Opsml Server Setup

In addition to using Opsml as a stand-alone python package, it can also be used as a server (FastApi) providing a proxy interface between data scientists and backend infrastructure (recommended approach). What this means for data scientists, is that they can use Opsml as they normally would without having to set any credentials apart from the http proxy uri. For engineers, this means that they can control the infrastucture, databases, and overall server setup based on their specifications and security requirements. More on this can be found here

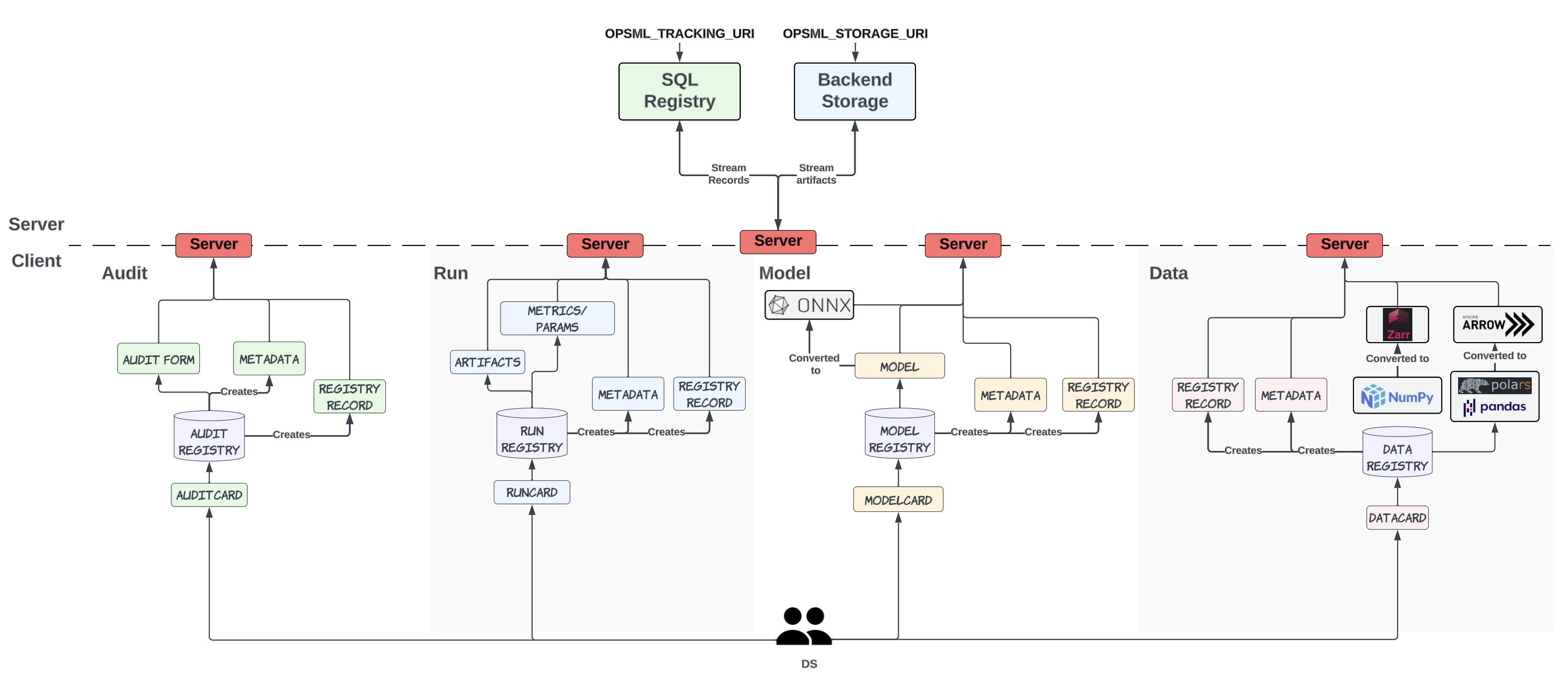

Registry Architecture

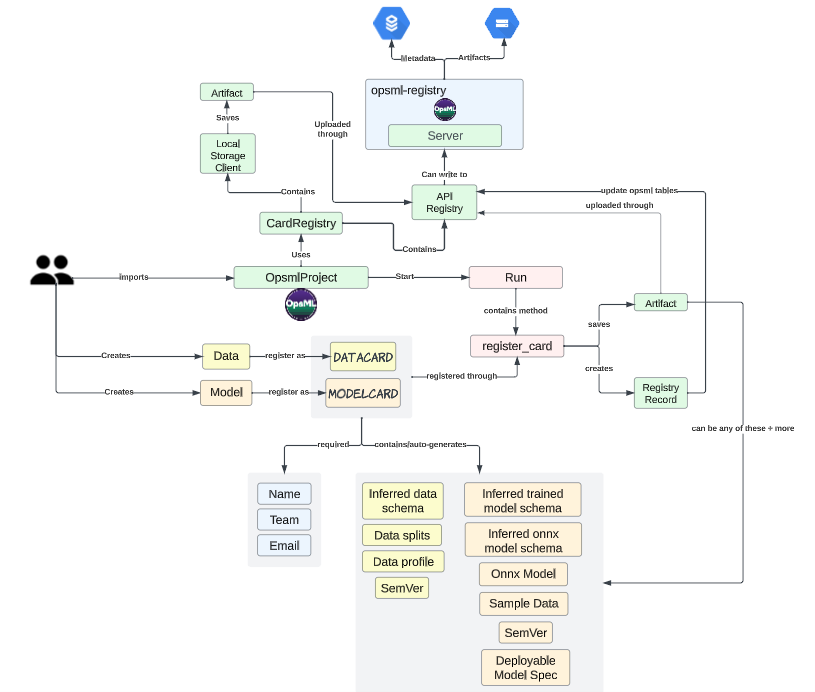

Project Run Flow Architecture

Setup

You can setup the Opsml server based on your repository needs. For our purposes at Shipt, we tend to follow a conventional setup whereby we host Docker images via K8s. For this setup up, we typically will install Opsml and its dependencies into a Dockerfile.

Required Env Vars

As mentioned here Opsml expects 2 variables to be set (these can be set in an Dockerfile or at webserver runtime).

OPSML_TRACKING_URI

This is the tracking uri of your backend database.

Example:

OPSML_TRACKING_URI=postgresql://user:pass@host:port/database_name

OPSML_STORAGE_URI

This is the storage uri of your storage backend (e.g. GCP, AWS).

Example:

OPSML_STORAGE_URI=gs://my-google-cloud-bucket

OPSML_POOL_SIZE (optional)

Default pool size to use with sqlalchemy engine. If not set, will default to 10.

Example:

OPSML_POOL_SIZE=10

OPSML_MAX_OVERFLOW (optional)

Default max overflow to use with sqlalchemy engine. If not set, will default to 5.

Example:

OPSML_MAX_OVERFLOW=10

Run Command

  • During local development/testing, you can spin up and test the Opsml server via the CLI command opsml-uvicorn-server which will launch a Uvicorn server.
  • For production, it is recommended that you run Gunicorn.
  • The following command can be used to run a Gunicorn Opsml server.

gunicorn -k uvicorn.workers.UvicornWorker --config=./app/gunicorn_conf.py --bind=0.0.0.0:3000 "opsml.app.main:run_app(login=False)"

Example pyproject.toml for an Opsml Server

[tool.poetry]
name = "opsml-server"
version = "0.1.0"
description = ""
authors = ["ml-platform"]

[tool.poetry.dependencies]
python = ">=3.9,<=3.11"
opsml = {version = "^2.0.0", extras = ["gcs", "postgres", "server"]}
